2001-2004 Chevrolet Corvette C5 Base 5.7L LS1 Engine w/ Accessories
This used C5 Corvette LS1 engine is a 5.7L long block with accessories, ECU and throttle, removed from a running and driving 2002 Corvette Base Coupe. It fits 2001-2004 C5 Corvette Base models and ships drained of all fluids. Condition: Used. Weight: 550 lbs.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

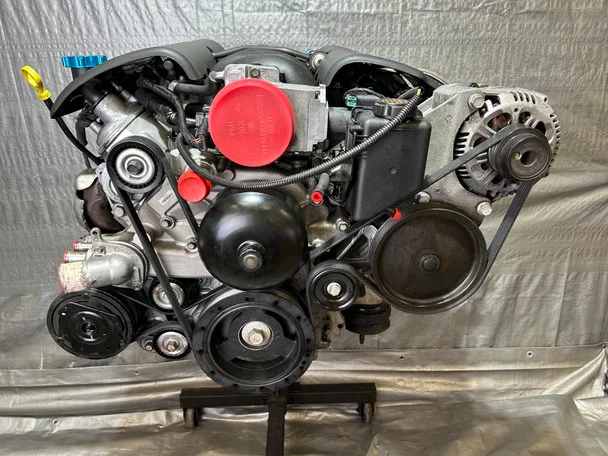

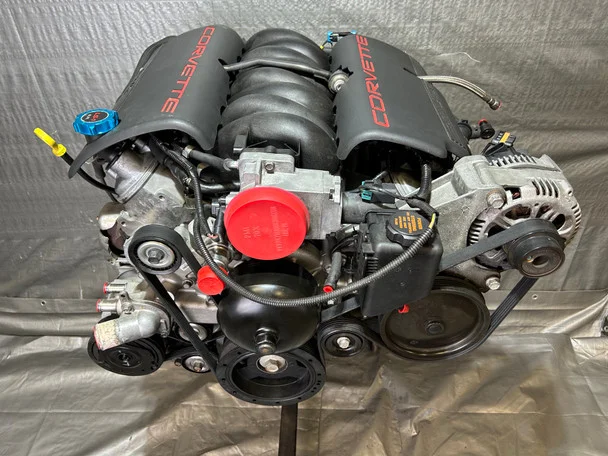

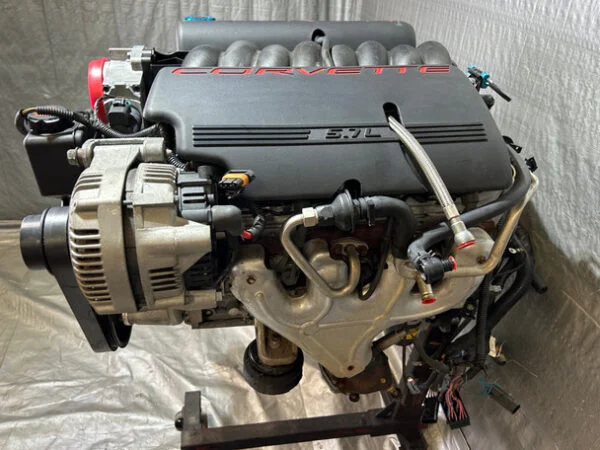

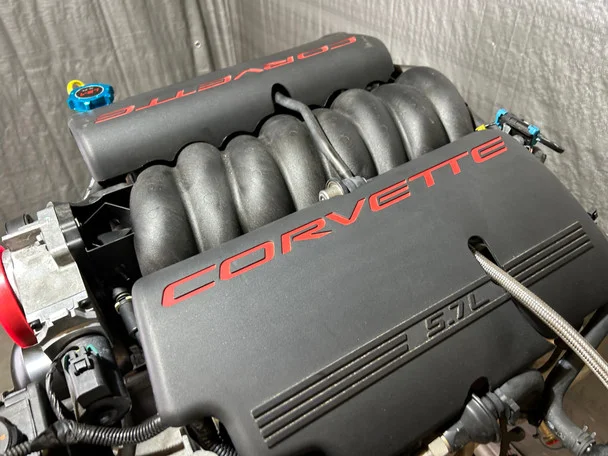

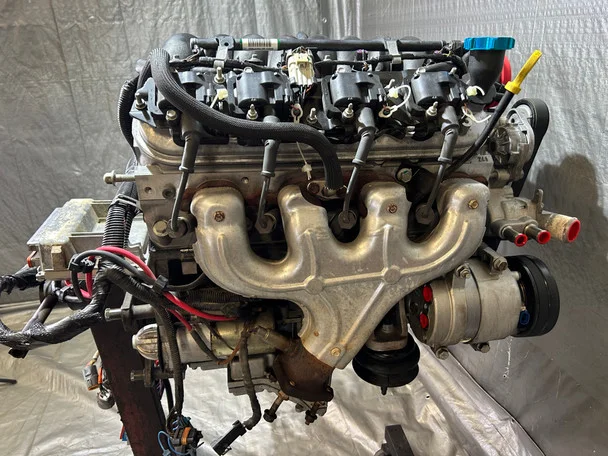

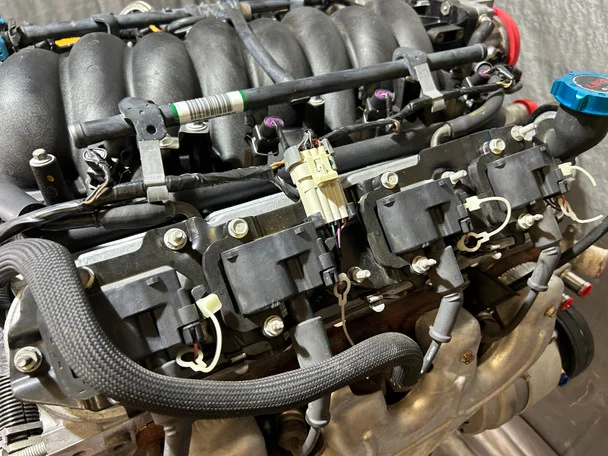

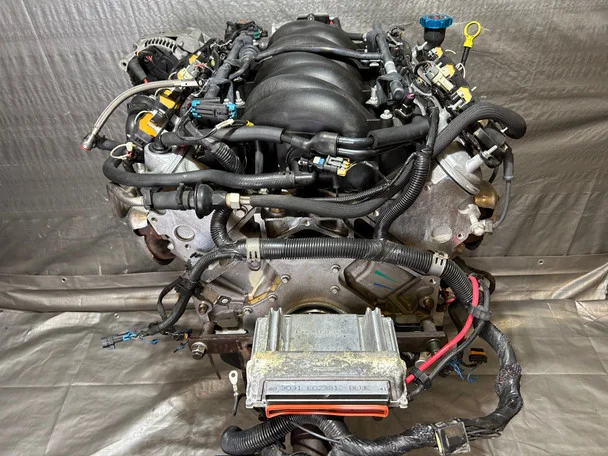

This C5 Corvette LS1 engine is a used 5.7L long block with accessories, ECU and throttle, pulled from a running and driving 2002 Chevrolet C5 Corvette Base Coupe (listed as 106K). It is for owners replacing the engine in a 2001-2004 C5 Corvette Base.
Key features
- Removed from a running and driving car, and driven and tested before removal.
- Idles smoothly at 900 rpm with no smoking or hesitation.
- Compression tested with good results. Driver side: 200-200-205-200. Passenger side: 200-205-205-200.
- Block has not been hit or cracked and is free of major surface rust or corrosion.
- Oil and fluids drained with no abnormalities. Ships drained of all fluids.
What is included
The engine comes with the intake manifold, engine covers, throttle body, TAC module, throttle pedal, coil packs, wiring harness, ECU module (part # 12200411), power steering pump and reservoir, alternator, injectors, AC compressor, fuel rail, exhaust manifolds and motor mount brackets. You will need to reuse some components and hardware from your existing vehicle.
Note: There was some oil residue near the valve cover gaskets and oil pan gasket. The seller suggests replacing these gaskets, and any other easy-to-access seals, while the engine is out of the vehicle.
C5 Corvette LS1 engine specifications
| Spec | Detail |
|---|---|
| Engine | 5.7L LS1 long block |
| Fits | 2001, 2002, 2003, 2004 Chevrolet C5 Corvette Base |
| Donor vehicle | 2002 Chevrolet C5 Corvette Base Coupe, 106K |
| Condition | Used |
| Weight | 550 lbs |
| ECU part number | 12200411 |
Shipping
The engine ships on a pallet via FedEx Freight to the continental 48 states, Mexico and Canada. Add it to the cart to see exact shipping costs. Two options are offered: with or without a liftgate truck. Freight companies deliver to the curb, not inside. For residential deliveries, FedEx will call to schedule an appointment.
90 day warranty
The warranty starts on the day the buyer receives the engine. It covers the engine block, crankshaft, pistons, rods, bearings, oil pump, cylinder head, head gasket, camshafts, valves and lifters against defects that keep the engine from operating as intended or cause noises consistent with damaged internals, such as rod knock or spun bearings.
- Not covered: timing belt, water pump, thermostat, spark plugs, spark plug wires, sensors and seals, plus labor, diagnostic and towing costs.
- Claims: be prepared to supply pictures, video and/or a statement from a shop or mechanic. The engine must remain in the car as installed until approval. The warranty is non-transferable and applies only to the original purchaser.
- Voids the warranty: overheating (shown by heat indicator tabs), not running fresh oil and filter, aftermarket turbo/supercharger, nitrous or tune, installation errors, track, racing or drifting use, and major disassembly or internal modification.
FAQ
Which vehicles does this engine fit?
It fits the 2001, 2002, 2003 and 2004 Chevrolet C5 Corvette Base.
Does the engine ship with oil and fluids?
No. It ships drained of all fluids. Fresh oil and a new oil filter must be run in the engine, or the warranty is void.
How long is the warranty?
The warranty lasts 90 days from the day the buyer receives the engine, and covers the internal parts listed above.
