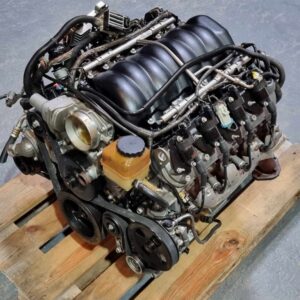

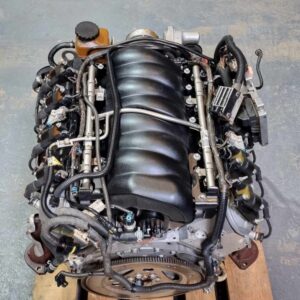

GM Chevrolet 6.0L L98 / LS2 V8 Engine Swap Kit
This L98 engine swap kit is a used GM Chevrolet 6.0L Gen IV aluminum V8 with about 56,000 run-tested miles. It includes the wiring harness, OEM ECU, intake manifold, fuel rail, injectors and a low-mount alternator setup. It is compatible with a cable-driven throttle conversion.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
This L98 engine swap kit is a used GM Chevrolet 6.0L (364 cubic inch) Gen IV aluminum V8 dropout package for builders who want a complete engine with its wiring and control module. The engine comes from a vehicle with approximately 56,000 original, run-tested miles.
Key features of the L98 engine swap kit
- Gen IV LS-based 6.0L small block V8 with a cast aluminum block and 6-bolt main caps.
- Rectangular-port aluminum cylinder heads, casting number 823 or 5364.
- No displacement-on-demand hardware.
- Compatible with a cable-driven throttle conversion.
- Compact low-mount alternator setup for narrow engine bays.
Specifications
| Spec | Detail |
|---|---|
| Engine type | GM Gen IV 6.0L LS-based small block V8 (L98 architecture) |
| Displacement | 6.0L / 364 cubic inches |
| Cylinder heads | Rectangular-port aluminum, casting #823 / #5364 |
| Block material | Cast aluminum alloy with 6-bolt main caps |
| Mileage | Approximately 56,000 run-tested miles |
What is included
- Engine assembly
- Intake manifold, fuel rail and injectors
- Engine wiring harness
- Factory engine control module (ECU/PCM/ECM)
- Low-mount alternator accessories and essential front ancillaries
Popular swap applications
Listed applications for this kit include Mazda RX-7, RX-8 and Miata; Nissan 350Z, S13, S14 and S15; BMW E36 and E46; Honda S2000; kit cars; hot rods; and custom marine builds.
FAQ
Does this kit include the ECU and wiring harness?
Yes. It comes with the engine wiring harness and the factory engine control module (ECU/PCM/ECM).
Can it be used with a cable throttle?
Yes. The kit is compatible with a cable-driven throttle conversion.
How do I get a shipping quote?
Message the shop with your zip or postal code. Quotes are available for the United States and worldwide.
