LS3 525HP “Red Hot” Complete Engine Assembly

LS3 525HP “Red Hot” Complete Engine Assembly

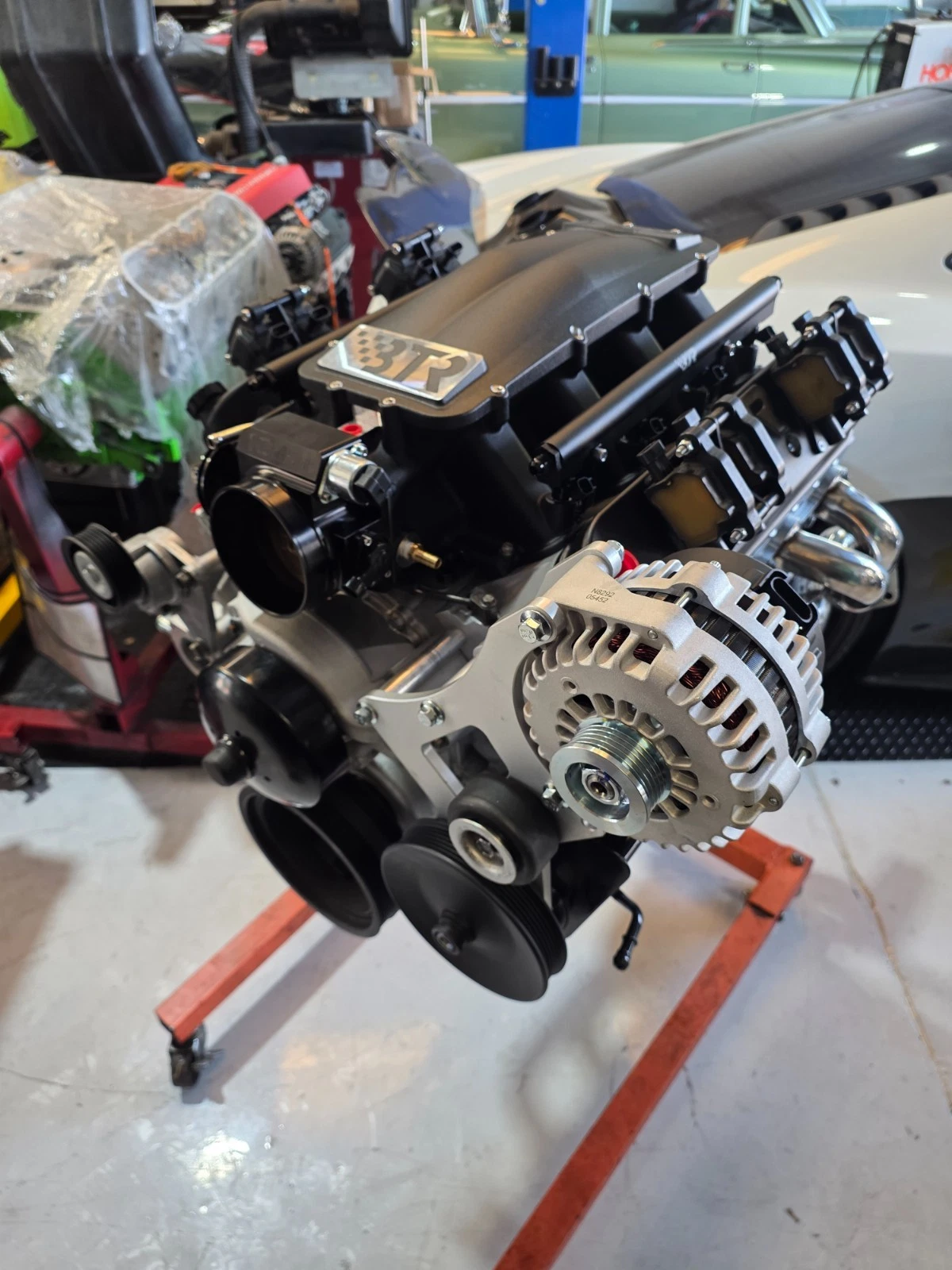

Looking to drop a high-performance, show-stopping powerhouse into your street machine, custom truck, or pro-touring build? Swap Engine Vault is proud to showcase this completely refreshed Hot Rod Stage 3 LS3 525HP “Red Hot” 6.2L V8 engine assembly from M&M Motors.

Engineered for enthusiasts who refuse to compromise on either style or raw performance, this 16-valve gasoline engine is precision-built to deliver a thrilling driving experience with a stout 525 horsepower on tap. Featuring a distinctive “Red Hot” aesthetic, these motors are built to suit your specific custom finish preferences, giving you the perfect blend of modern LS3 horsepower and premium custom style.

Technical Specifications & Internal Component Architecture

Every engine in this series begins as a hand-selected rebuildable core that undergoes complete teardown, thermal cleaning, and strict inspection. Blocks are precision honed or bored (exact overbore sizes and custom ring gaps are always documented for your records), while the cylinder heads receive a thorough hot-tank cleaning and a professional performance valve job.

Premium Components Parts List:

• Camshaft & Valvetrain: BTR (Brian Tooley Racing) “RED HOT” performance camshaft (Stage 2 or Stage 4 BTR cams can be substituted upon request). Upgraded with a BTR .660″ dual valve spring kit, BTR 7.4″ hardened pushrods, BTR LS7 lifters, and heavy-duty BTR lifter trays.

• Rocker Arms: Factory GM rocker arms upgraded with a high-durability BTR Trunnion kit to eliminate standard bearing failures under high lift.

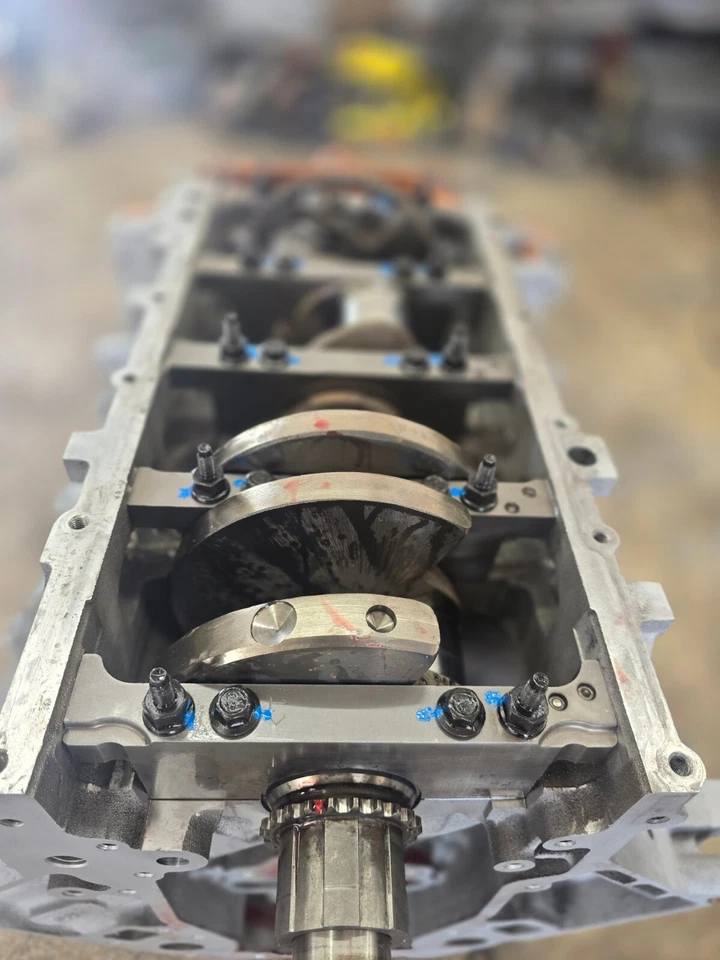

• Rotating Assembly: UEM flat-top pistons mated to premium Gen IV reconditioned connecting rods, sealed with a high-performance Hastings street/strip piston ring set. The factory crankshaft is meticulously cleaned and micro-polished.

• Bearings & Seals: Premium MAHLE/Clevite Tri-Metal high-performance bearings, a BTR billet oil barbell, and bulletproof billet DOD (Displacement on Demand) oil plugs precision-pressed into the block.

• Oiling & Timing: Melling 10296 high-volume and high-pressure oil pump paired with a BTR heavy-duty LS3 timing chain set.

• Fasteners & Gaskets: High-tensile Speedmaster head studs clamping down multi-layer steel BTR LS3 head gaskets.

• Covers & Ignition: Brand new LS3 timing cover (with new sensor), new valley plate, fresh spark plug wires, and NGK TR6 performance spark plugs.

Induction, Accessory Fitment & Vehicle Application

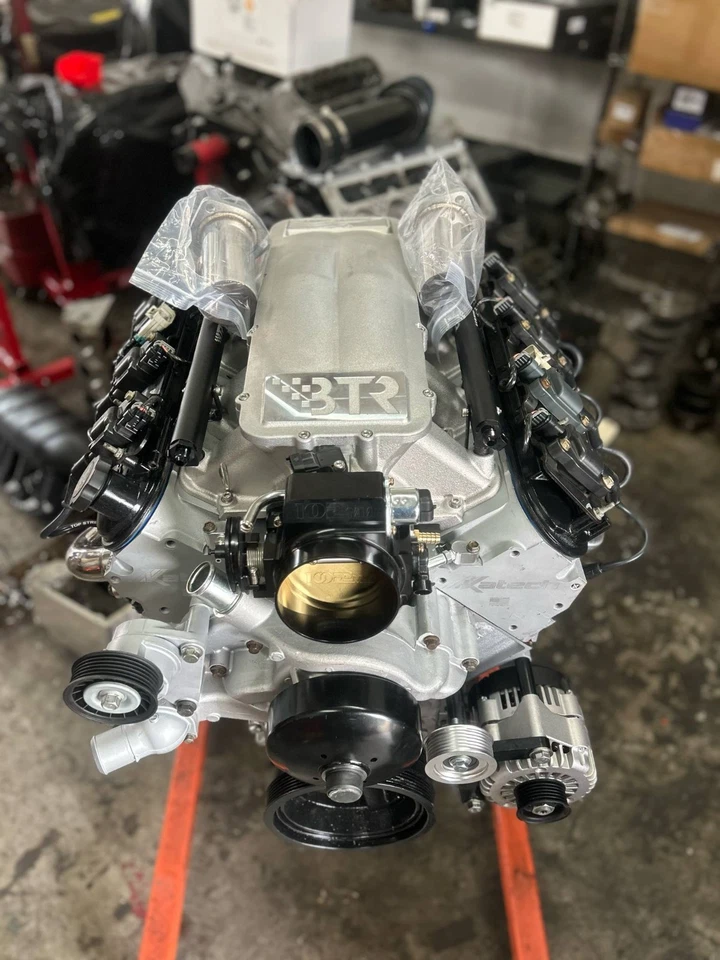

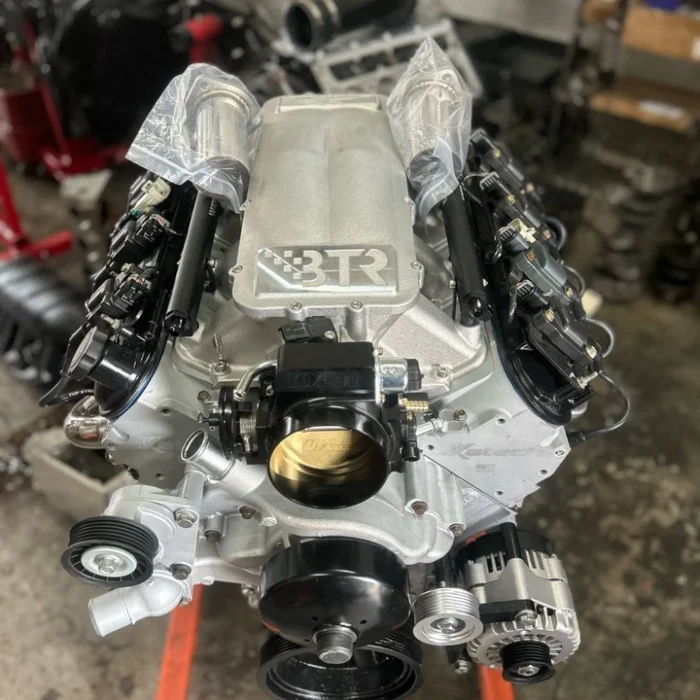

• Premium Intake Configuration: This assembly includes a high-flowing BTR Equalizer intake manifold paired with genuine GM 50lb fuel injectors to efficiently feed the Stage 3 valvetrain.

• Vehicle-Specific Dress Kit: Tailored to your specific chassis clearance requirements, this motor comes equipped with your choice of an LS3 Corvette or Camaro water pump paired with a matching Corvette or Camaro specific harmonic balancer.

• Drop-In Configuration Disclaimer: Engineered as a direct drop-in long block for original equipment and restomod applications, this engine assembly does not include a throttle body, ignition coils, or primary front accessories (such as the alternator, power steering pump, or A/C compressor). This allows you to easily transfer your vehicle-specific hardware without paying for unnecessary components.

Warranty, Support & Custom Logistics

We understand that a high-performance engine is a major investment in your project’s future. Every LS3 engine package leaves the assembly line backed by comprehensive technical support and quality assurance.

Warranty Details: All premium LS3 motors include a comprehensive 12-Month parts warranty. Complete warranty validation documents and detailed installation guides are securely packed inside every engine shipment.

Because we “Build to Suit,” multiple custom color finishes are available upon request. This engine is securely crated, heavy-duty palletized, and ready for fully insured domestic freight delivery across the United States, alongside direct containerized ocean freight routing to all major international ports throughout Australia.

Contact Swap Engine Vault today to go over your custom color layout, select your preferred BTR camshaft stage, or get a fast, competitive shipping quote for your ride!
